resistor

resistors do resistor stuff.

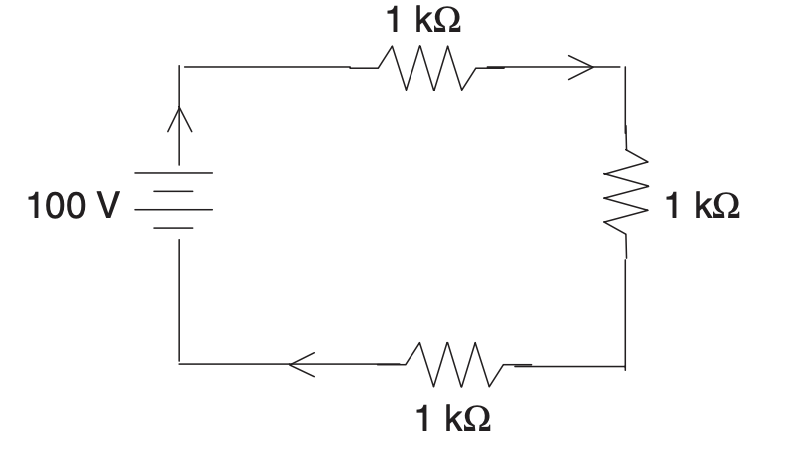

resistors in series

Their resistance add!

\begin{equation} R_{eq} = R_1 + R_2 + \dots \end{equation}

CURRENT remains the same through the resistors.

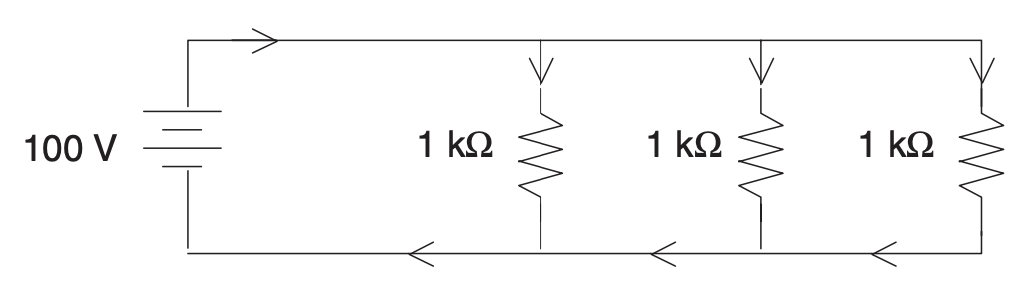

resistors in parallel

Their resistance add by inverse fraction!

\begin{equation} \frac{1}{R_{eq}} = \frac{1}{R_1} + \frac{1}{R_2} + \dots \end{equation}

VOLTAGE remains the same through the resistors.
